Part # 10040408 (Legacy Part #K4274UG)

Part # 10040408 (Legacy Part #K4274UG)

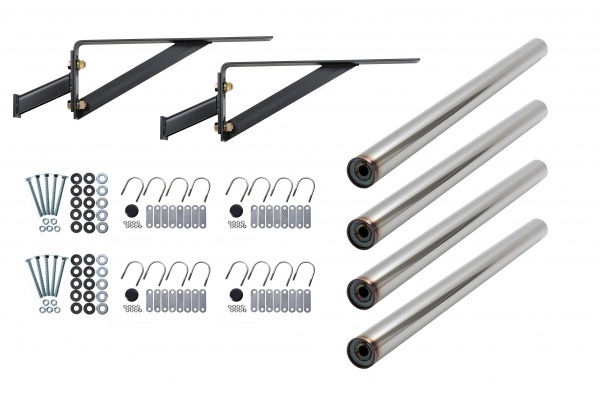

Tubular Fender Brackets

Specifications:


Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Galvanized Steel
Tube: Undrilled
Hardware / Material, Quantity and Part Number (A): Galvanized U-Bolts / Four (4) CG100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Hardware / Material, Quantity and Part Number (B): Galvanized Carriage Bolts / Two (2) B4H-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Mount / Length, Mounting Hole, Finish, Material: 26.500″, .750″ Through-Hole, Galvanized, 12 Gauge Carbon Steel
Tube Length: 26.500″
Center Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, Two (2) B900G
Front and Rear Bracket Type / Material, Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Galvanized Tube / Four (4) T274UG

SKU: 10040408 Categories: , , ,
Installation Instructions

Description

View or Download Fender Mounting Bracket Instructions
