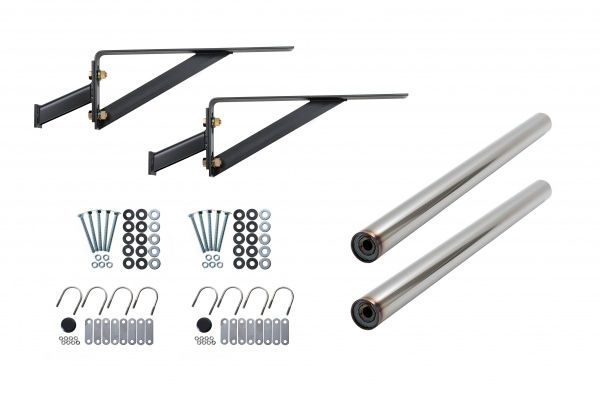

Part # 10040402 (Legacy Part #K3364US)

Part # 10040342 (Legacy Part #H2263UG)

Tubular Fender Brackets

Specifications:

Applications: 3-Up
Fender Type: Poly
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Galvanized Tube / Two (2) T263UG
Tube: Undrilled
Hardware / Material, Quantity and Part Number: Galvanized U-Bolts / Two (2) P100H-1 Each Contains Three (3) U-Bolts, Lock Nuts and Washer Plates
Tube Mount / Length, Mounting Hole, Finish, Material: 26.500″, .625″ Through-Hole, Galvanized, 12 …

Fenders and Brackets Metal Fenders & Brackets

Part # 10040344 (Legacy Part #H2264UG)

Tubular Fender Brackets

Specifications:

Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Galvanized Steel
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Galvanized Tube / Two (2) T264UG
Tube: Undrilled
Hardware / Material, Quantity and Part Number: Galvanized U-Bolts / Two (2) CG100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Tube Mount / Length, Mounting Hole, Finish, Material: 26.500″, …

Fenders and Brackets Metal Fenders & Brackets

Part # 10039770 (Legacy Part #AR200-60-1)

Aluminum Single Axle Fenders

Specifications:

Finish: Mill Finish .090″ Aluminum
Style: 4-Rib w/Beaded Edge
Overall Length: 60″
Fender Opening: 43″
Wheel Size: 22.5″ and 24.5″
Application: Dual Wheels
Packaging: Cardboard Wrapped Individual

Fenders and Brackets Poly Fenders & Brackets

Part #10040815 (Legacy Part # PS211PA5)

Standard Tube Mount Quarter Fender

Specifications:

Handedness: Right
Packaging: Boxed Individual
Contents: Includes Tube Mounting Clamp, Top Flap and Top Flap Mounting Hardware
Fender Finish: Black High Density UV Resistant Poly
Mounting Tube & Clamp Finish: 18 Gauge Black E-Coat / Galvanized Carbon Steel
Top Flap Hardware: Zinc Plated Steel
Top Flap Details: Black Poly, Plain No Logo
