Part # 10040393 (Legacy Part #K3362PG)

Part # 10040393 (Legacy Part #K3362PG)

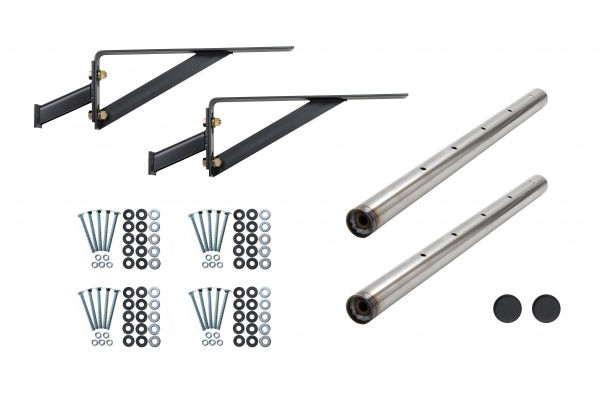

Tubular Fender Brackets

Specifications:


Applications: 2-Rib, 4-Rib, Smooth
Fender Type: Galvanized Steel
Tube: Predrilled
Hardware / Material, Quantity and Part Number (A): Galvanized Carriage Bolts / Two (2) B4H-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .625″ Through-Hole, Galvanized, 12 Gauge Carbon Steel
Hardware / Material, Quantity and Part Number (B): Galvanized Carriage Bolts / Two (2) B4H-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Length: 30.000″
Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, One (1) B900G
Front Bracket Type / Material, Quantity and Part Number: Single-Bolt Frame Mount, Predrilled Galvanized Tube / Two (2) T362PG

SKU: 10040393 Categories: , , ,
Installation Instructions

Description

View or Download Fender Mounting Bracket Instructions
